BSSI-V-GN10200 10KW Inverter | Dual MPPT, WiFi, 160A Charger

Estoy en línea para chatear ahora

BSSI-V-GN10200 10KW Inverter | Dual MPPT, WiFi, 160A Charger

BSSI-V-GN10200 10KW Inverter | Dual MPPT, WiFi, 160A Charger
BSSI-V-GN10200 10KW Inverter | Dual MPPT, WiFi, 160A Charger

Ampliación de imagen :  BSSI-V-GN10200 10KW Inverter | Dual MPPT, WiFi, 160A Charger

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: KUOMAN
Número de modelo: 10.2KW
Pago y Envío Términos:
Detalles de empaquetado: Embalaje internacional estándar
Tiempo de entrega: 20 días laborables

BSSI-V-GN10200 10KW Inverter | Dual MPPT, WiFi, 160A Charger

descripción
peso: 14kgs Tipo de salida: fase única o fase dividida
Voltaje de entrada: 12V/24V/48V Tipo: Inversores CC/CA, sistema solar conectado a la red
Frecuencia de salida: 50Hz/60Hz Voltaje de salida: 110V/220V/230V/240V
Potencia de salida: 10KW 10KVA 10000W Nombre del producto: Inversor solar MPPT híbrido fuera de la red fuera de la red
Eficiencia: > 85% Protección: Sobrecarga/sobretensión/cortocircuito de salida

BSSI-V-GN10200 10KW Inverter | Dual MPPT, WiFi, 160A Charger

Product Features & Parameters

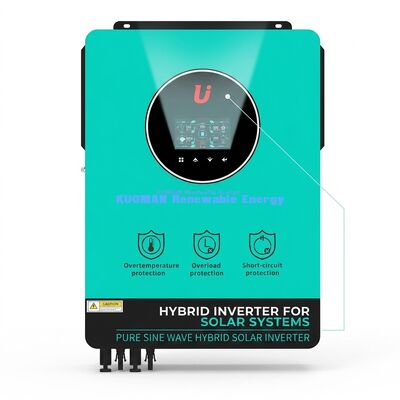

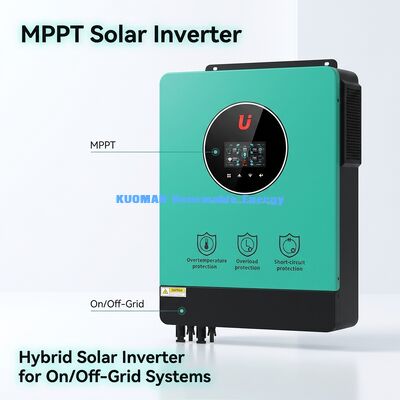

This 10KW hybrid energy storage inverter combines robust power with intelligent management.

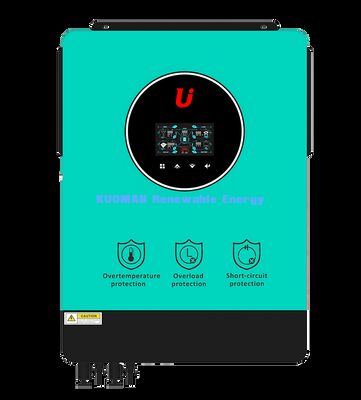

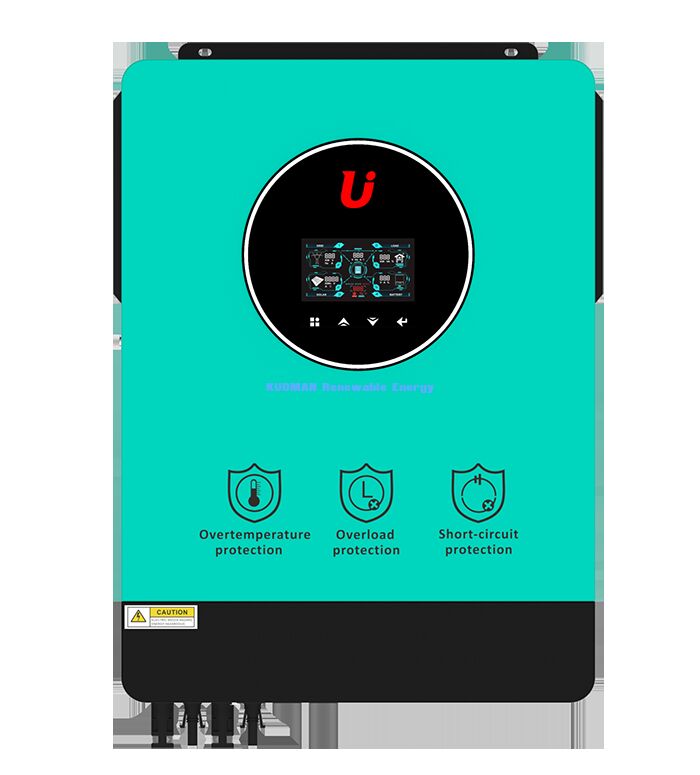

It features a user-friendly circular display with a prominent red "U" logo for easy monitoring and control.
Its core safety is ensured by a triple-protection system against over-temperature, overload, and short circuits.

Key technical parameters, as detailed in the spec sheet, include:Power:​ Rated output of 10200W/10200VA.
  • Efficiency:​ Achieves a maximum conversion efficiency of up to 98%.
  • Solar Input:​ Supports high PV input with dual MPPT trackers (Max 5400W+5400W).
  • Battery & Charging:​ 48V nominal battery voltage with a high 160A maximum solar charging current.
  • Output:​ Provides pure sine wave AC output (220/230/240VAC) suitable for all appliances.
  • Connectivity:​ Offers multiple communication options including RS485, WiFi, and GPRS.

Application Scenarios

  • Ideal for residential and commercial energy independence, this inverter is perfect for:
  • Hybrid Solar Systems:​ Maximize self-consumption of solar energy while staying grid-connected.
  • Backup Power Solutions:​ Provide essential power during grid outages for homes and businesses.
  • Off-Grid Installations:​ Reliable power for remote homes, cabins, or telecommunications sites.
  • Solar+Storage Projects:​ The core component for new or retrofit battery storage installations.
FAQ
  • Q: What is the efficiency of this 10KW inverter?
    A: It boasts a high maximum conversion efficiency of up to 98%, ensuring minimal power loss.
  • Q: Can it be used for both on-grid and off-grid applications?
    A: Yes, its hybrid design makes it suitable for grid-tied, off-grid, and backup power scenarios.
  • Q: What type of battery does it work with?
    A: It is designed for a 48V battery bank and is compatible with communication protocols for various lithium batteries.
  • Q: Does it have built-in safety features?
    A: Absolutely. It includes comprehensive protection against over-temperature, overload, and short-circuit conditions.
